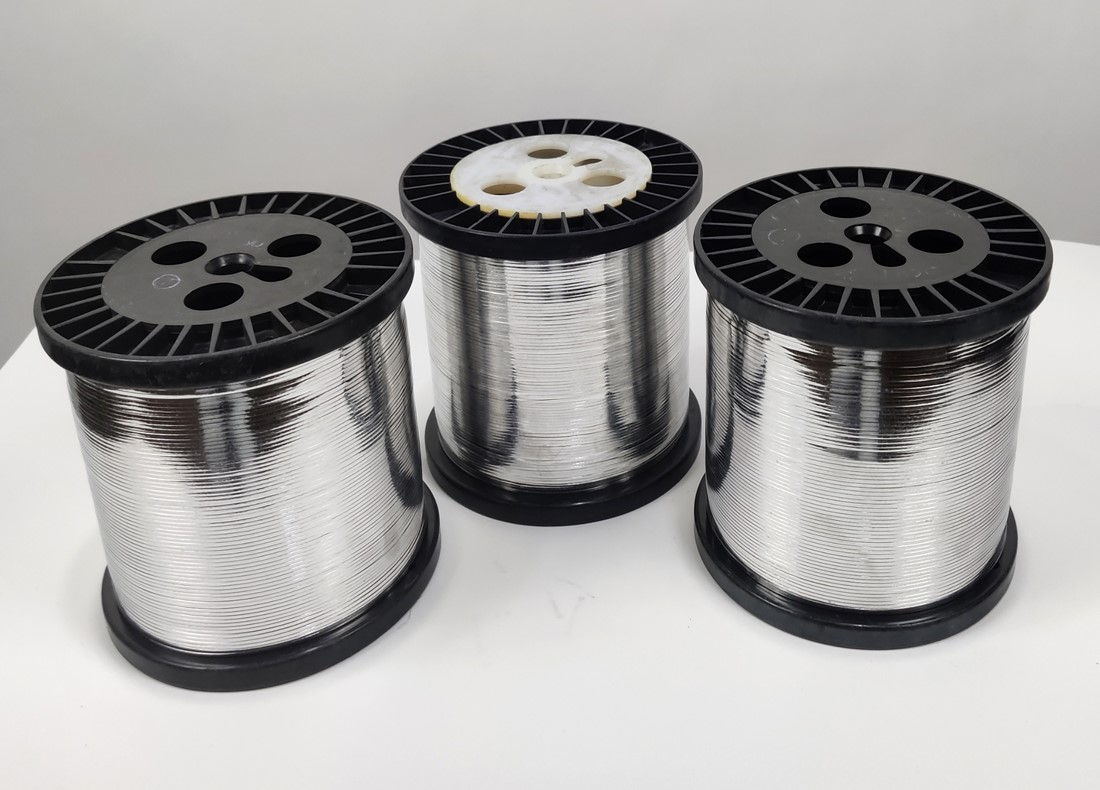

PV Ribbon is a hot-dip tinned conductor that collects current from photovoltaic cells and is the conductor that joins the individual solar cells and carries the current generated to the distribution system. PV Ribbon is an important component of photovoltaic systems, so its specifications are important to the function, efficiency, and longevity of solar panels.
| STANDARDS | |
| Type | N/A |
| TECHNICAL DATA | |
| Dimensions | Width: 1.2 to 5.0 mm
Thickness: 0.1 to 0.4 mm |
| Mechanical properties | We offer different temper (soft, super soft) ribbon and busbar. Please contact us for mechanical properties (yield strength, tensile strength). |
| Operating voltage | |
| Resistance | As per standard |
| CONSTRUCTION | |
| Base Metal | Cu-ETP1 (UNS-C11000 / CDA-110) Cu-OF1 (UNS-C10200 / CDA-102) |
| Coating Alloys | SnPb 60/40
SnPbAg 62/36/2 |
| Coating Thickness | Nominal 15 micron per side on standard products.
Upto 30 micron (+/-5 micron) per side available on request. >5 microns Tin electroplating on busbar. |
| Insulation | N/A |
