Mini Mid Lines – Over the Needle

[/salt_icon_text]

[salt_icon_text]

[/salt_icon_text]

[salt_icon_text align=”right”]


[/salt_icon_text]

polylead-otn-1
polylead-otn-3
polylead-otn-4
polylead-otn-5
[salt_icon_text css=”.vc_custom_1560853231497{padding-top: 5px !important;padding-right: 20px !important;padding-bottom: 5px !important;padding-left: 20px !important;background-color: #efefef !important;}”]

Poly Lead – OTN

13440-13531[/salt_icon_text][salt_icon_text]

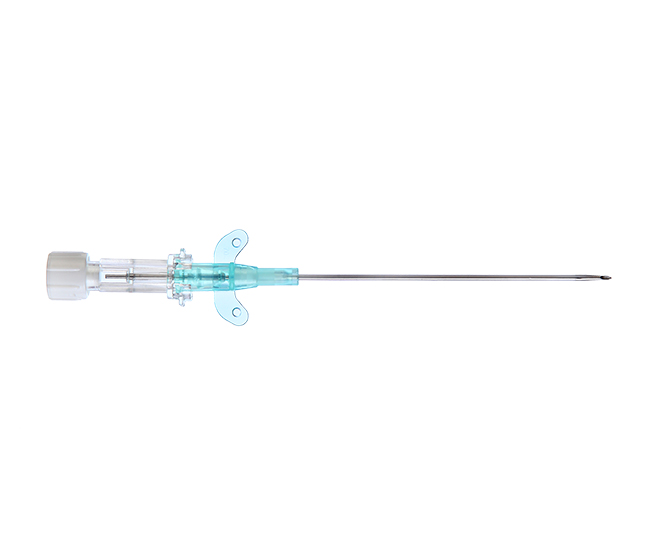

  • The New Mini-Mid line kit Over-the-needle is suitable for “dificult insertion vascular access”and needs approach to vessels by “Internal Juglar Vein”

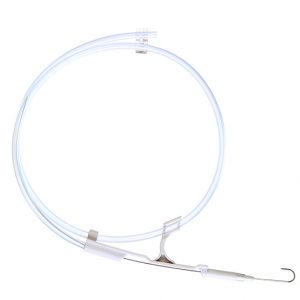

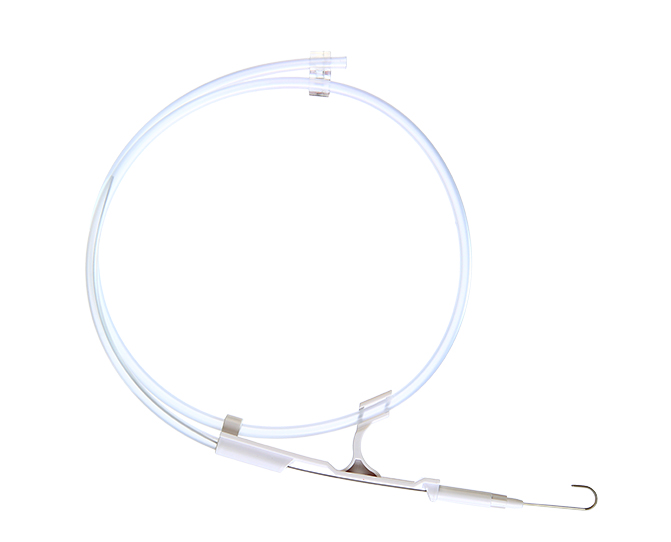

  • The kit contains also a Soft flexible Kink resistant straight Nitinol Guide wire for conversion into a over-the wire
  • Made of specially formulated and biocompatible radio opaque Polyurethane material providing strength during insertion
  • Specially designed soft tip for smooth & easy insertion of catheter

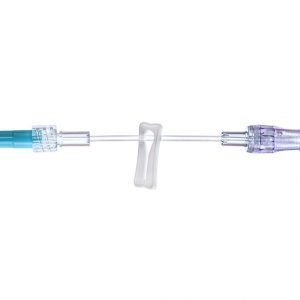

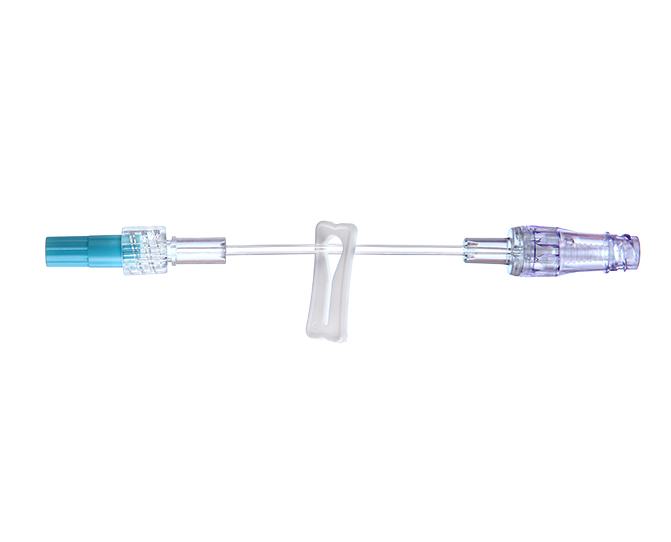

  • Needle free connector (5cm) provides closed system

[/salt_icon_text][salt_icon_text]Compatible with Power injectors upto 325-330 PSI

Size Catheter O.D.mm Catheter Length mm Flow Rate (ml/mnt)
14G Orange 2.0 45  305
16G Grey 1.7 45 200
17G White 1.5 45 142
18G Green 1.3 45/32 90

[/salt_icon_text]

polylead-otn-1
[salt_icon_text css=”.vc_custom_1560853247957{padding-top: 5px !important;padding-right: 20px !important;padding-bottom: 5px !important;padding-left: 20px !important;background-color: #efefef !important;}”]

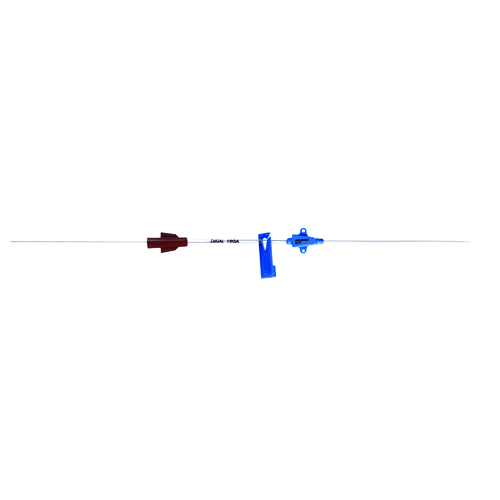

Poly Lead-OTW

13535-13586 [/salt_icon_text][salt_icon_text css=”.vc_custom_1658918260259{padding-top: 20px !important;}”]

  •  Indwelling catheter – Advanced polyurethane catheter with soft tip assures better bio – compatibility, provides desired strength during insertion
  •  Kink resistant flexible ‘straight’ tip guide wire – Made of Nickle & Titanium(Nitinol) provides flexibility while insertion
  •  Needle free connector – Provides closed system and reduces the risk of catheter related blood stream infections

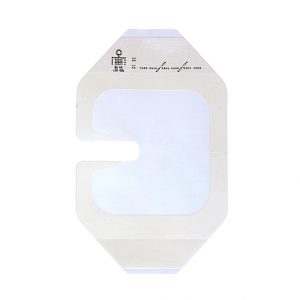

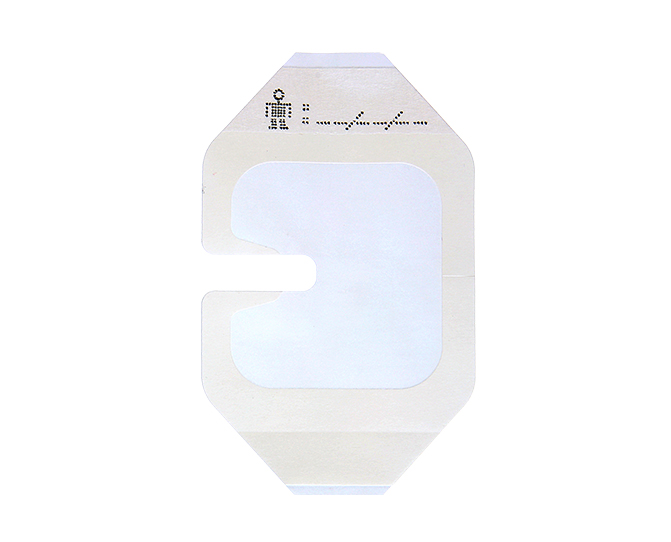

  •  Securement device – Provides efficient catheter stabilization

[/salt_icon_text][salt_icon_text]

Product Code Fr Size G Catheter Length (mm) Flow Rate (ml/min) Guidewire Length (mm) Introducer Needle
13587 4 18G 40 38 250 20G X 42mm
13588 4 18G 60 33 250 20G X 42mm
13589 4 18G 80 29 250 20G X 42mm
13595 4 18G 10 26 250 20G X 42mm
13596 3 20G 40 18 250 20G X 42mm
13597 3 20G 60 14 250 20G X 42mm
13598 3 20G 80 12 250 20G X 42mm
13621 3 20G 10 8 250 20G X 42mm
13622 2 22G 40 15 250 20G X 42mm
13623 2 22G 60 12 250 20G X 42mm
13624 2 22G 80 10 250 20G X 42mm
13625 2 22G 10 6 250 20G X 42mm

[/salt_icon_text]
